For global AC power supply
Low power consumption through the use of a built-in brushless motor. With support for a wide voltage range, the fans can be used worldwide single-phase 100-240 VAC (50/60 Hz). The same characteristics are specified regardless of the frequency used.
HIGH Supply Voltage Spread
Single-Phase 100-240 VAC (50/60 Hz) Compatibility
The fans and cooling modules of EMU Series can be operated in any country or region. The same characteristics can be achieved regardless of the frequency or supply voltage.
Light Weight of 0.29 kg
The mass of the fan has been optimized by approximately 45% by using new materials for the frame.
Lifetime of 60,000 hours
The lifetime is approximately 2.2 times higher. The of fan replacements can be reduced, this decreases the maintenance costs dramatically.

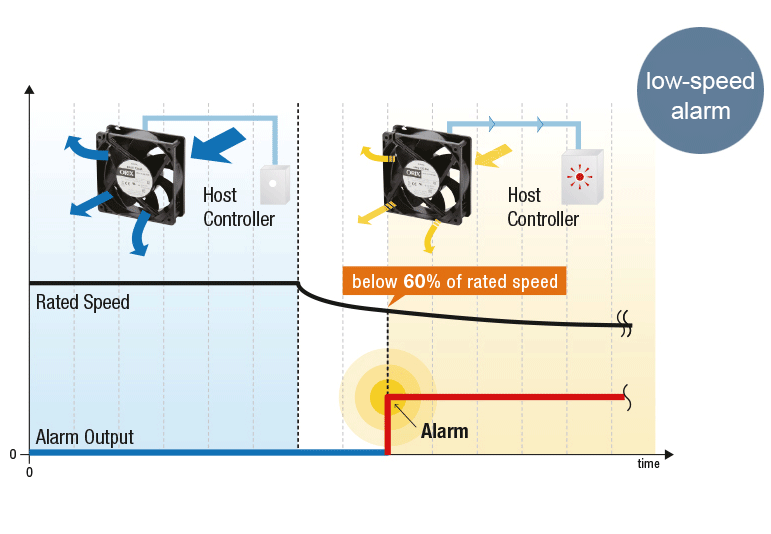

ENSURE Speed Drop Detection
Early Detection of Decreased Air Flow
The low-speed alarm outputs an alarm if it detects a drop in the speed of the cooling fan due to the life of the motor or a foreign
object. Since a drop in speed can be detected, the cooling fan can be replaced before it stops.
LOW Power Consumption
Power Consumption Reduced by Approximately 68%
By using brushless motors, power consumption has been reduced by approximately 68%.
Comparison of Specifications and Characteristics between the EMU Series and Conventional Product
◊ Specifications Comparison
| |
EMU1238-□ |
Conventional Product
50/60 Hz |
| Power Consumption [W] |
4.4 14/13 |
| Speed [r/min] |
3250 |
2800/3250 |
| Max. Air Flow [m3/min] |
3 |
2.7/3 |
| Max. Static Pressure [Pa] |
84 81/81 |
| Noise [dB] |
42 |
43/46 |
| Mass [kg] |
0.29 0.53 |

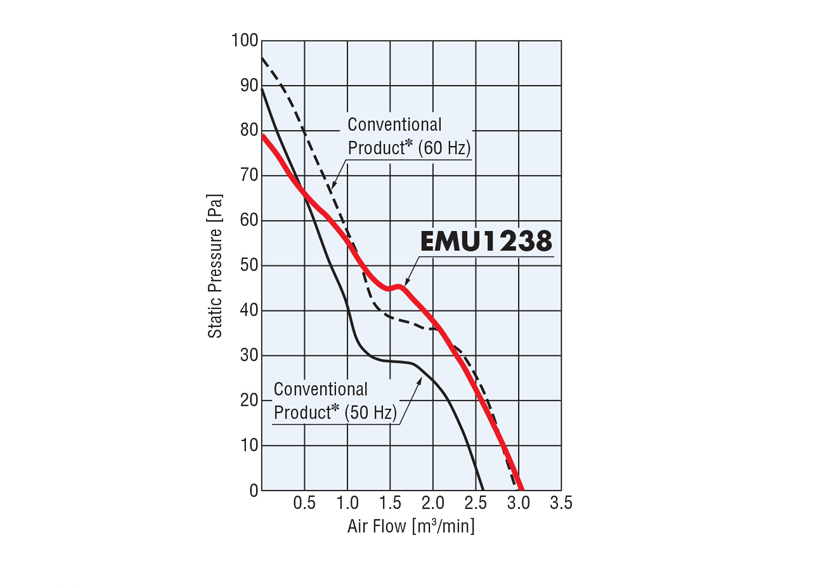

◊ Characteristics Comparison
Enclosure Fan Cooling Modules
These products integrate the EMU Series fan with peripheral equipment such as the cover, filter media, frame and finger guard. Optimized cooling for control boxes

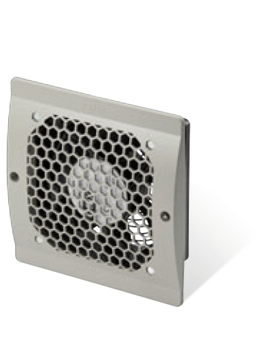

Finger Guard IP2X Type

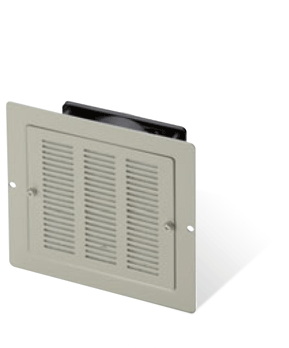

Slit Metal Plate IP4X Type
